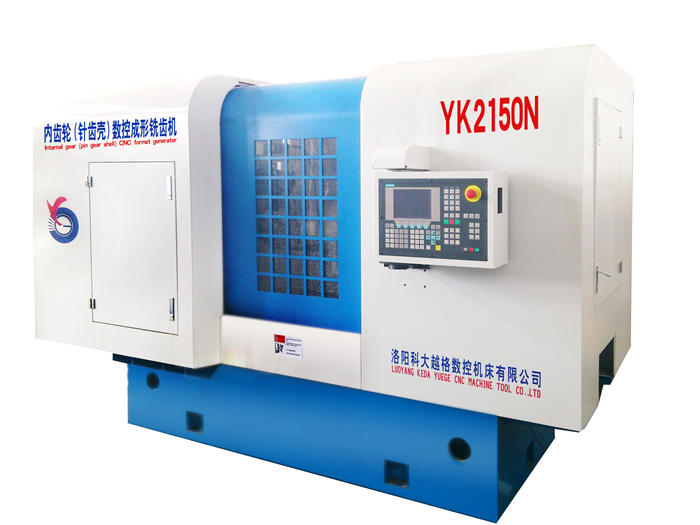

Internal gear CNC format generator
Machine model YK2150N
Model of machine tool
This machine tool is specially developed for internal gears (pin gear shells in RV reducer of robot) processing, which is used for efficient milling with forming method. It is suitable for batch production of internal gears of automobile drive axle and pin gear shells in RV reducer of robot.
Machine specifications
Main Specification | YK2150N |
Max. Machining diameter(mm) | 500 |
Max. Pin tooth diameter(mm) | 15 |
Max. Face width(mm) | 150 |
Machining precision | 7 |
Diameter of work spindle hole(mm) | 153（1:20） |
Cutter spindle speed(rpm) | 50~200 |
Cutter motor power(Kw) | 11 |
Overall dimensions(mm) | 2990x1550x2150 |
Total weight(Kg) | 9000 |
